Bifferboard

First startup of the Bifferboard


After some preparations like uploading the latest firmware to the Bifferboard and connecting a RS232 level converter, it was time to startup the Bifferboard. After some kernel messages the BusyBox came up and the Bifferboard was up and running.
Below is the final message shown in minicom and some pictures of the entire setup.

BusyBox v1.11.3 (2009-05-08 21:37:54 BST) built-in shell (ash)
Enter 'help' for a list of built-in commands.

Biffroot v1.4
=============
Bifferboard profile based on OpenWrt Kamikaze.
See http://www.bifferos.com for info.
root@OpenWrt:/#
Output at minicom

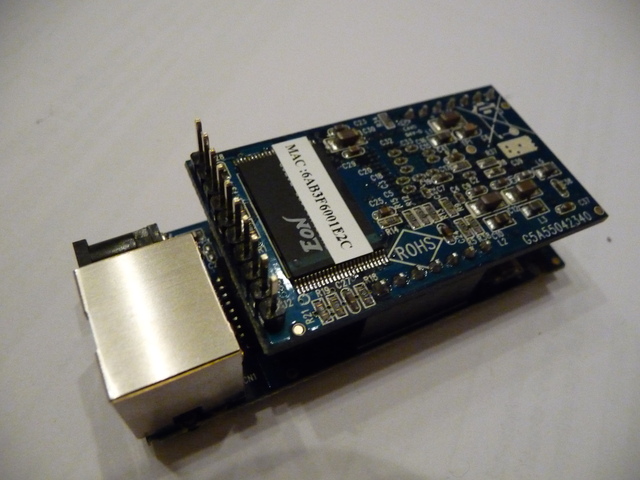

Bifferboard with pin connector

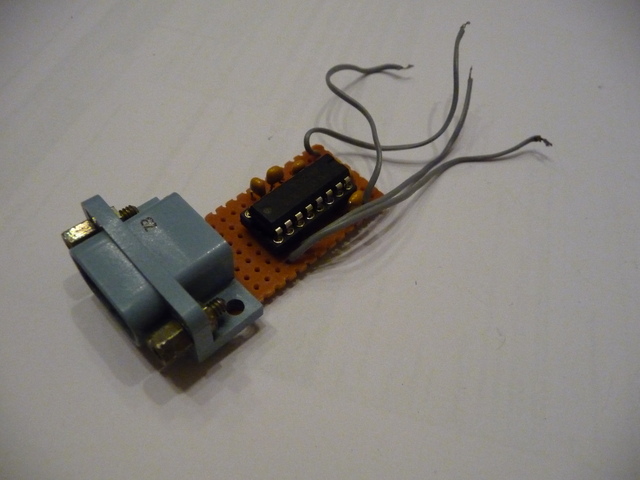

RS232 level converter

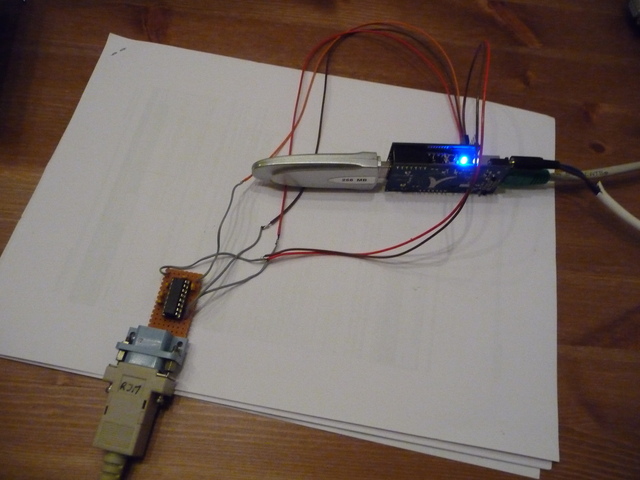

Final setup
